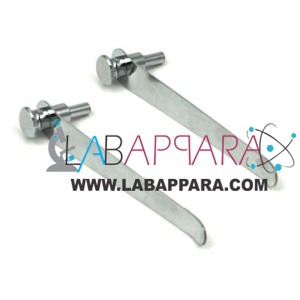

Stage Clip – Laboratory Equipment
It is a mechanical device that protects the gears of the microscope.
Stage: The flat plate where the slides are placed for observation. Stage Clips: Clips on the stage used to hold the slide in place.
Both horizontal and vertical movements are made by a rack and pinion arrangement provided. It has a movement of 70 mm in X-axis and 30 mm in Y-axis. Its vernier reads to 0.1 mm.
Mechanical Stage Coaxial :
In this model both X & Y movements can be made from knobs provided on the same X-axis. The horizontal movement is made by a lead screw guidenut arrangement and vertical movement is made by a rack and pinion arrangement. It has a movement of 70 mm in X-axis and 30 mm in Y-axis. Its vernier reads to 0.1 mm.
